330ML GLASS BOTTLE, MAX CPACITY B/H 300-500

1. Power supply: 220-380V 50HZ.

2. Cost of installation: 120 USD per day;

3. Payment: 50% T/T for deposit, 50%T/T before shipping;

4. Deslivery time: Within 50-55 working days since the receipt down payment;

5. Production capacity: 300-500 bph;

6. Warranty: 1 year;

7. After preparing machunes, seller will send one engineers to Buyer´s factory to install and commission the machine. And Train Buyer´s staff.

All of cost of Seller´s technician will be paid by Buyer.

Model: CDL4-2

Material: Pump body stainless steel SUS304

Working Conditions: liquid with thick, clean, non-flammable, non-explosive, and doesn’t contain solid particle or fiber.

Temperature of liquid: Normal temperature: -15℃ to +70℃

High temperature: +70℃ to +120

Elevation: The highest: 1000m

Flow: 4m³/H

Flow length: 36m

Power: 4KW

The motor is completely sealed, air cooling second grade standard air blower.

The protecting rank: IP55

Insulation rank: F

Voltage: 380V 50HZ

Speed: 2900r/min

Pump inputting mouth diameter: Inner diameter ø50mm.

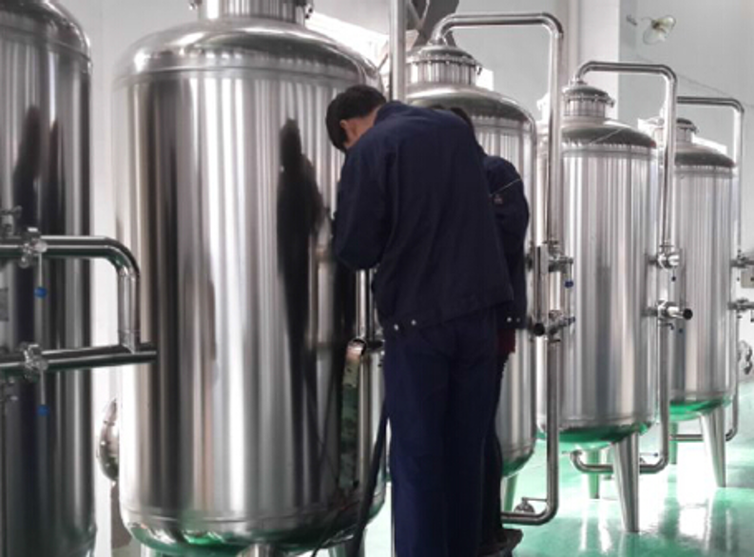

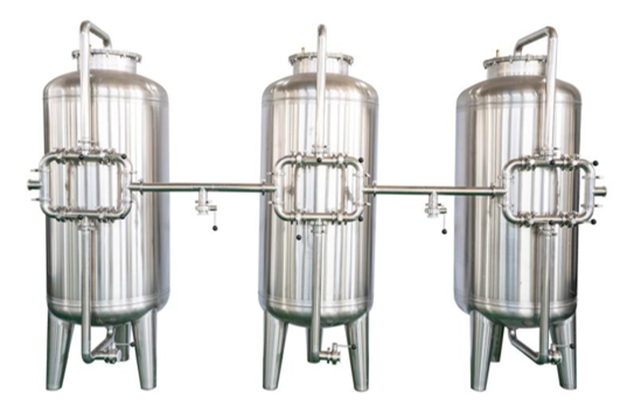

2.Multi Medium Filter

Model: JDL-4

Tank body size: Ø800mm * H 1600mm

Material: SUS304 stainless steel (Food grade)—Made in china.

Components: Water distributor, water gather, pressure gauge, filter material, valves and so on.

Filter medium: Sand

Specification: ф2mm、ф1mm、ф0.5mm、ф0.2mm

The bigger shall be put downside and the smaller shall be put upside.

Usage: It is mainly used to remove Plankton, Moss, Suspension, Colloid and so on.

Filtering volume:4m³/h

The filter is equipped with back wash system and user shall connect the pump with each filter and open relative valves to back wash.

Model: CHT-4

Treating volume: 4m³/h

Tank body size: Ø800mm * H 1600mm

Material: SUS304 stainless steel (Food grade)—Made in china.

Components: Water distributor, water gather, pressure gauge, filter material, valves and so on.

Medium: Shuck shape active carbon

Usage: It is mainly used to remove strange smell, chlorine, chloride, organic mater and heavy mental, lower color and optimize water quality.

The filter is equipped with back wash system and user shall connect the pump with each filter and open relative valves to back wash.

Model: JML-4

Treating volume: 4m³/h

Height: 1200mm

Diameter:  400mm

Material: SUS304 stainless steel (Food grade )—Made in china

Medium: Polypropylene film 20feet 12 pieces

Filter precision: 5μm

Usage: It is mainly used to remove the tiny impurity.

Open the filter to remove the impurity.

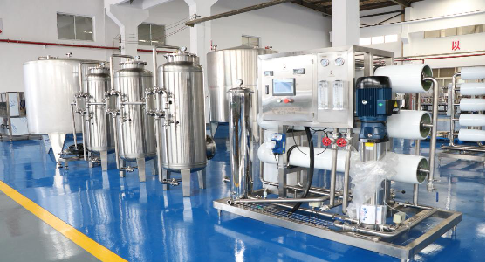

Model: FSJ-1(1st grade)

Usage: This device is used to remove the germs, the harmful inorganic ion, and organic ion; remove heavy metals and salt; rearrange water structure. It is the ideal equipment to make high standard pure drink water.

Main design data: First grade RO≥ 2m³/H (25ºC)

               Recycle rate: ≥60%

Model：CG-2000

Volume：2m3    Weight: 600kg

Material：304 stainless steel

Dimension：Ф700×900mm

Usage：Store and transfer, buffer

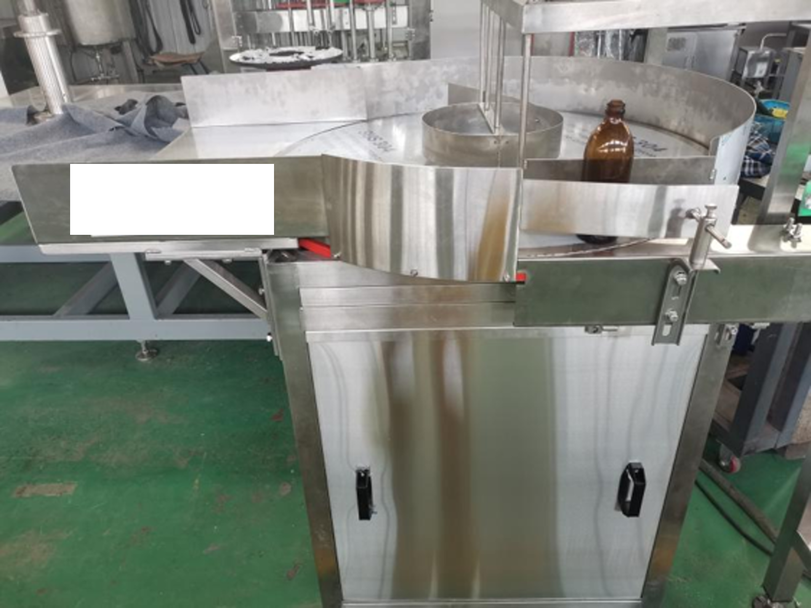

1. Semi-automatic bottle unscrambler

Suitable for automatic separation and automatic transmission of round and square bottles, such as conveyor belts connected to labeling machines, filling machines, and capping machines, and automatic bottle feeding to improve efficiency; it can be applied to the middle connection of the assembly line as a buffer The platform reduces the length of the conveyor belt.

The diameter of the applicable bottle can be adjusted freely, and it is compatible with peeling bottles and plastic bottles. The bottle conveying speed is 30~200 bottles/min. The speed can be adjusted steplessly, which is convenient for production arrangements.

work process:

The unscrambler's turntable drives the product to rotate automatically. The product moves close to the edge of the glass turntable under the fluctuation of the unscrambler's plate, and the products are led out in an orderly manner along the unscrambler slot.

Technical parameters of automatic bottle unscrambler:

Applicable product diameter (for round bottles) and height: diameter: φ20mm～φ100mm

Height: 20mm～150mm

Weight (kg): about 60kg

Frequency (HZ): 50HZ

Voltage (V): 220V

Power (w): 120W

Equipment dimensions: (L×W×H) 990mm×900mm×1040mm

Features of bottle unscrambler

1. It is suitable for the automatic transmission of round and square bottles, such as the conveyor belt connected to the labeling machine, filling machine, and capping machine, which can automatically feed the bottle to improve efficiency; it can be applied to the middle connection of the assembly line as a buffer platform, Reduce the length of the conveyor belt;

2. The applicable bottle range can be adjusted freely, the bottle conveying speed is 30~200 bottles/min, and the speed can be adjusted steplessly, which is convenient for production arrangement.

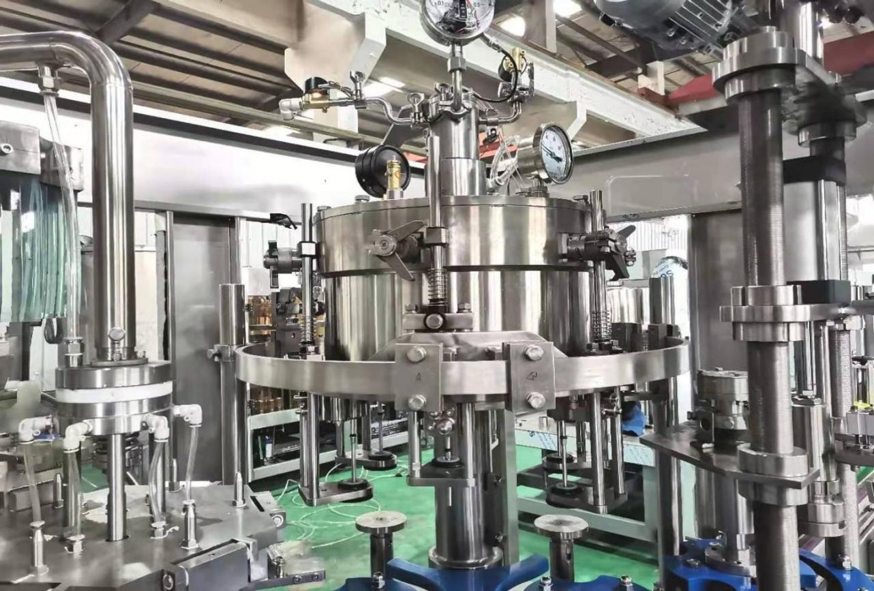

Working principle of filling :

CO2 pre-inflation

The inflation valve opens, forming a passage in the CO2 space between the wine bottle and the wine tank. CO2 is poured into the bottle through this passage.When the set time is reached, the inflation valve is closed and the CO2 pre-charging ends.

Vacuum

The vacuum valve stem is opened to form a passage between the wine bottle and the vacuum channel. The mixture of CO2 and air in the bottle exits the wine bottle through this passage, forming a vacuum in the wine bottle.When the set time is reached, the vacuum valve stem is closed, and one vacuum is completed.

Backup pressure

The inflation valve opens, forming a passage between the wine bottle and the return air passage. CO2 is poured into the bottle through this passage until the pressure of CO2 in the bottle is equal to the pressure in the wine tank.

Filling

When the liquid valve is opened, a passage is formed between the wine bottle and the wine tank. The material enters the bottle through this passage. At the same time, the CO2 in the bottle flows back to the wine tank through the air return pipe at the same speed. Until the material in the bottle rises over the air return pipe to form a pressure balance, the compressed CO2 in the bottle seals the material and continues to flow out.

Closed valve

After the filled bottle is allowed to stand for a certain period of time, the liquid valve and the inflation valve are closed to cut off the passage between the wine tank and the bottle.

Exhaust

The vent valve opens, creating a path between the wine bottle and the atmosphere. The pressure in the wine bottle is released by this passage. Finally, the pressure relief process is carried out until the wine bottle is separated from the filling part.

Welding, polishing details:

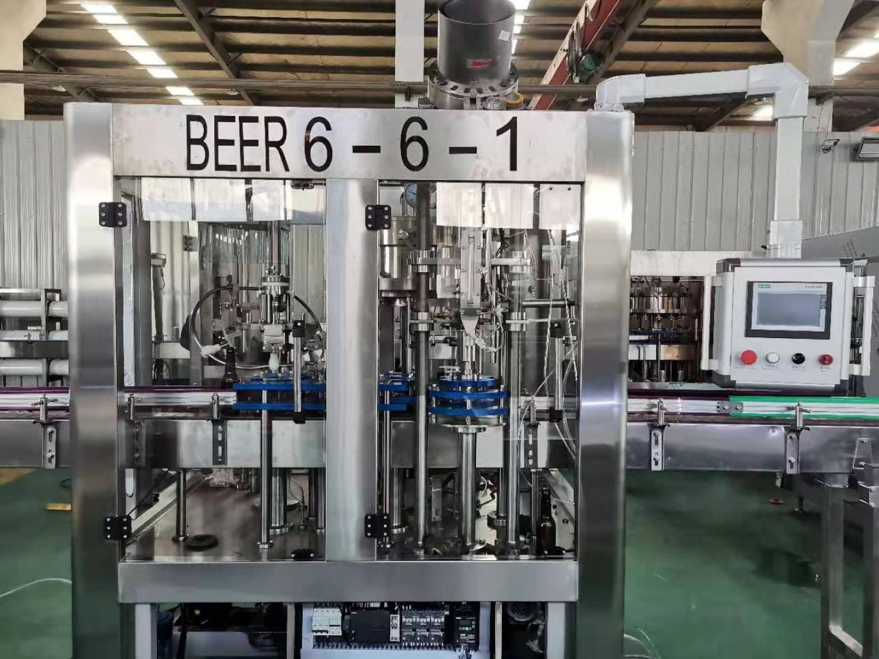

BGF6/6/1 Parameter parts:

Washing heads：   6

Filling valve heads： 6

Capping heads：    1

Bottle size:  330ml

Capacity: 300~500 bottle per hour(330 ml),

Applicable bottle：bottle height 150～300mm

Diameter Φ50～Φ80mm

Aseptic air consumption：0.2m3/min  >=0.2Mpa

The compressed air pressure: >=0.6Mpa

Sterile water pressure:  >=0.2Mpa

The CO2 pressure:  >=0.3Mpa

CO2 consumption：260g/100L Beer

water consumption including：vacuum pump： 0.2m3/h；blowing： 0.15m3/h

Operating voltage AC：380V 50Hz

Controling voltage DC：24V

The installed capacity:2.4KW

Main motor: 0.37KW

Spray pump: 0.37KW

Shock bubble pump motor:0.37KW

Vacuum motor: 1.1 KW

Hopper motor: 0 .18KW

Flush the pump motor:0.37KW

Overall dimension ：1650×1180×2850mm（L×W×H）

Weight：1000 Kg

Technical Parameters

Capacity: 10000 caps per hour

Fan motor 220V, 0.55KW

Vibration motor: 220V, 60W

Overall dimension (L*W*H): 750*650*2400mm

Framework material: stainless steel 304

Automatic Crown Cap Loader Machine:

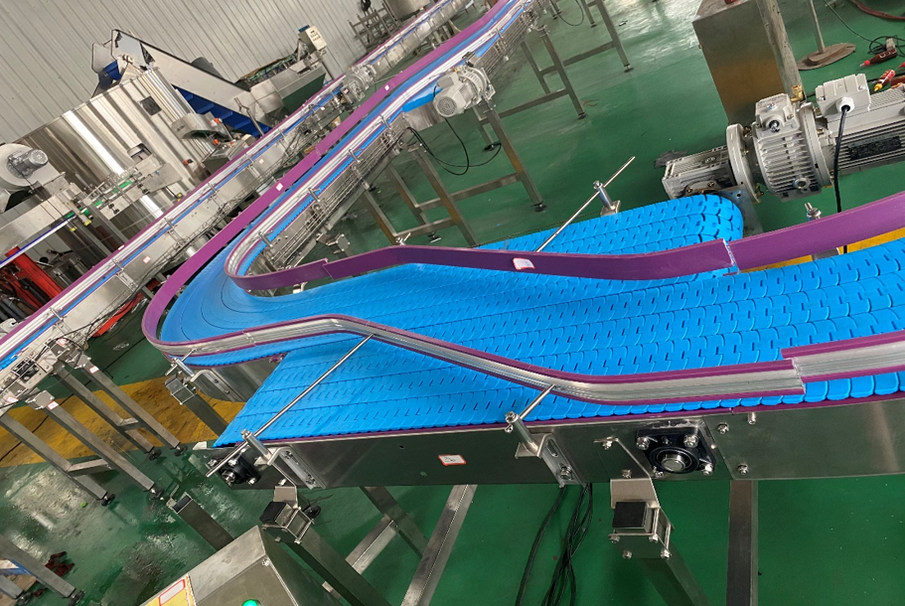

The speed of the conveyor belt adopts stepless speed regulation.

All spray pipes are stainless steel and the spray heads are evenly distributed.

The cooling tunnel sump is made of stainless steel, and is equipped with high and low liquid level control and alarm functions.

Cooling temperature to below 10 degrees

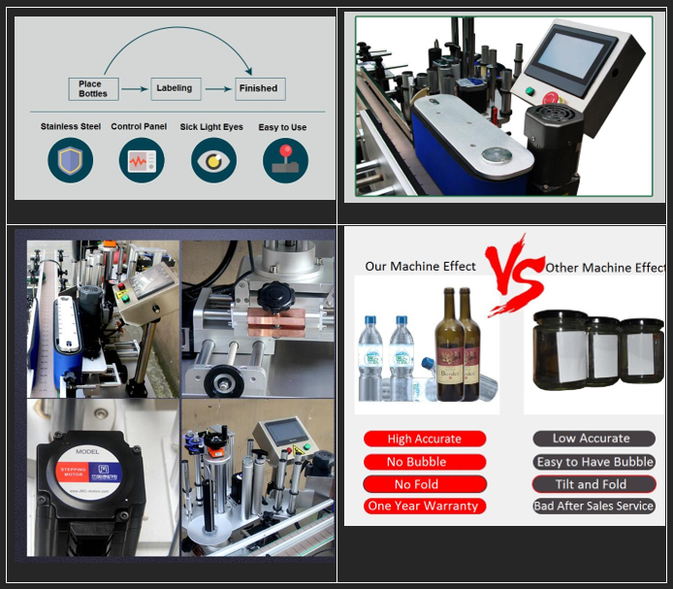

For the pharmaceutical, food, cosmetic and other industries round bottle labeling, can be affixed to the week and semicircular labeling labeling.

Optional automatic turntable Unscrambler can be directly connected to the front end production line, automatic feeding bottle into the labeling machine, increasing efficiency.

Optional configurations ribbon coding labeling machines, online print production date and batch number, reduce bottle packaging  processes,improve production efficiency.

Application:

For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.

Application: require circumferential surface of the membrane attached label or product.

Industry: Widely used in food, medicine, cosmetics, cosmetic, electronic, metal, plastics and other industries.

Application: round bottle labeling, labeling plastic bottles, canned food and so on.
